2 - 25DigiGate-700

™

for Windows

- User’s Guide

DigiGate-700

for Windows

™ ®

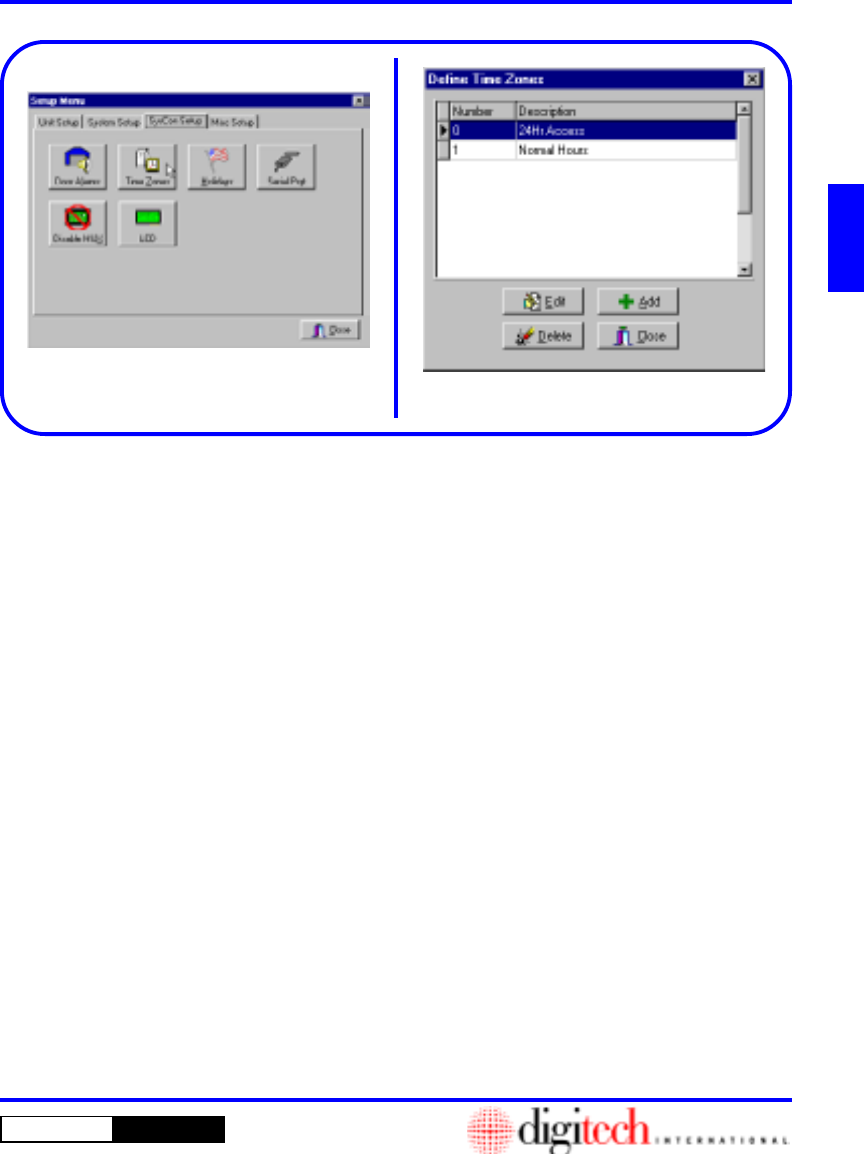

Figure 2-48

Figure 2-49

1. Click on the

SysCon Setup

tab of the

Setup

, then Click on the

Time Zone

button.

Figure 2-48.

2. This will open the

Define Time Zones

window. Figure 2-49.

NOTE: The DigiGate-700 for Windows

system ships with two pre-defined Time Zones:

“0” and “1.” The zero time zone is fixed and

cannot be modified. Time Zone 0 is for 24

Hr. Access. Time Zone 1 is labeled

Normal Hours and is set for 6 AM to 10 PM.

These times can be modified.

3. To add a new code, Click on the

Add

button.

Figure 2-49.

Time Zones

System Controller Setup

This section deals with technical information about your Site and the way your Gate System will operate.

You may decide that one or two of these are not necessary for your location.
